Formosa Side Consoles


$0.00
* Sail Away
Click to zoom / enlarge this image

Formosa’s Side Console is the ultimate fishing companion, offering an elevated and expansive forward casting deck with ample underdeck storage. This clever design keeps your deck space clear, making it perfect for sports fishing enthusiasts who crave both functionality and freedom on the water.

Boat Details
  • Make: Formosa
  • Name: Side Consoles
  • Model Number: N/A
  • Year: 2026
  • Length: 4.95 metres
  • Hull Material: Aluminium Plate
  • Hull Type: N/A
  • Passenger Capacity: 5-7
  • Boat Usage: N/A
  • Steering: Side Console
  • Warranty: Contact Dealer

Your Ultimate Fishing Platform

Sizes available: 4.95, 5.25, 5.65, 5.95 and 6.35m

Formosa’s Side Console is the ultimate fishing companion, offering an elevated and expansive forward casting deck with ample underdeck storage. This clever design keeps your deck space clear, making it perfect for sports fishing enthusiasts who crave both functionality and freedom on the water.

With an open fishing platform and full access to the portside, the Side Console provides a spacious area for storing equipment. The low-profile console minimises wind resistance and maximises your visibility, ideal for those long days spent exploring inlets or cruising offshore. Plus, its compact height makes it an easy fit for garages with limited clearance. As standard, Formosa includes an Electric Motor Mount, providing smooth, precise navigation through waterways.

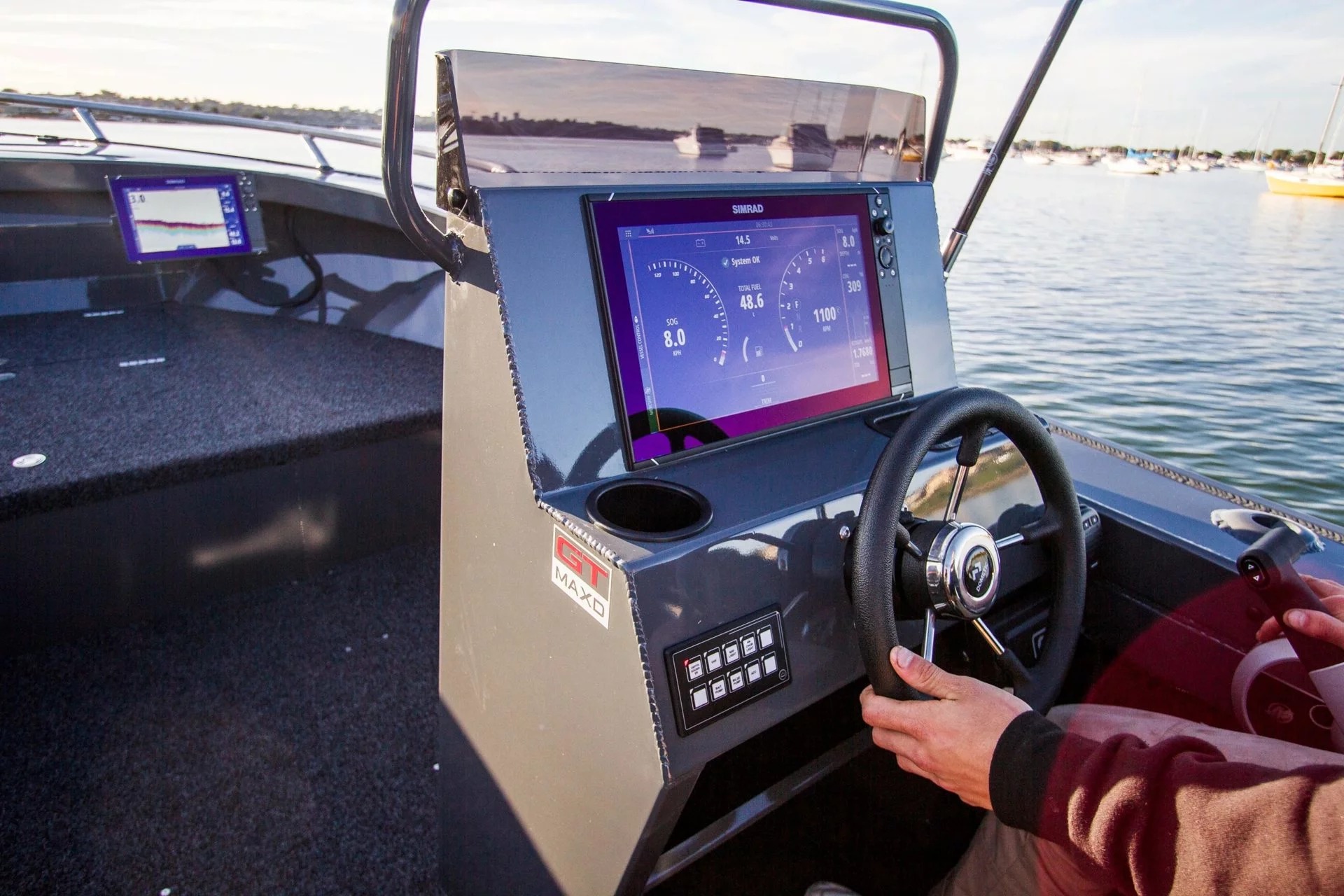

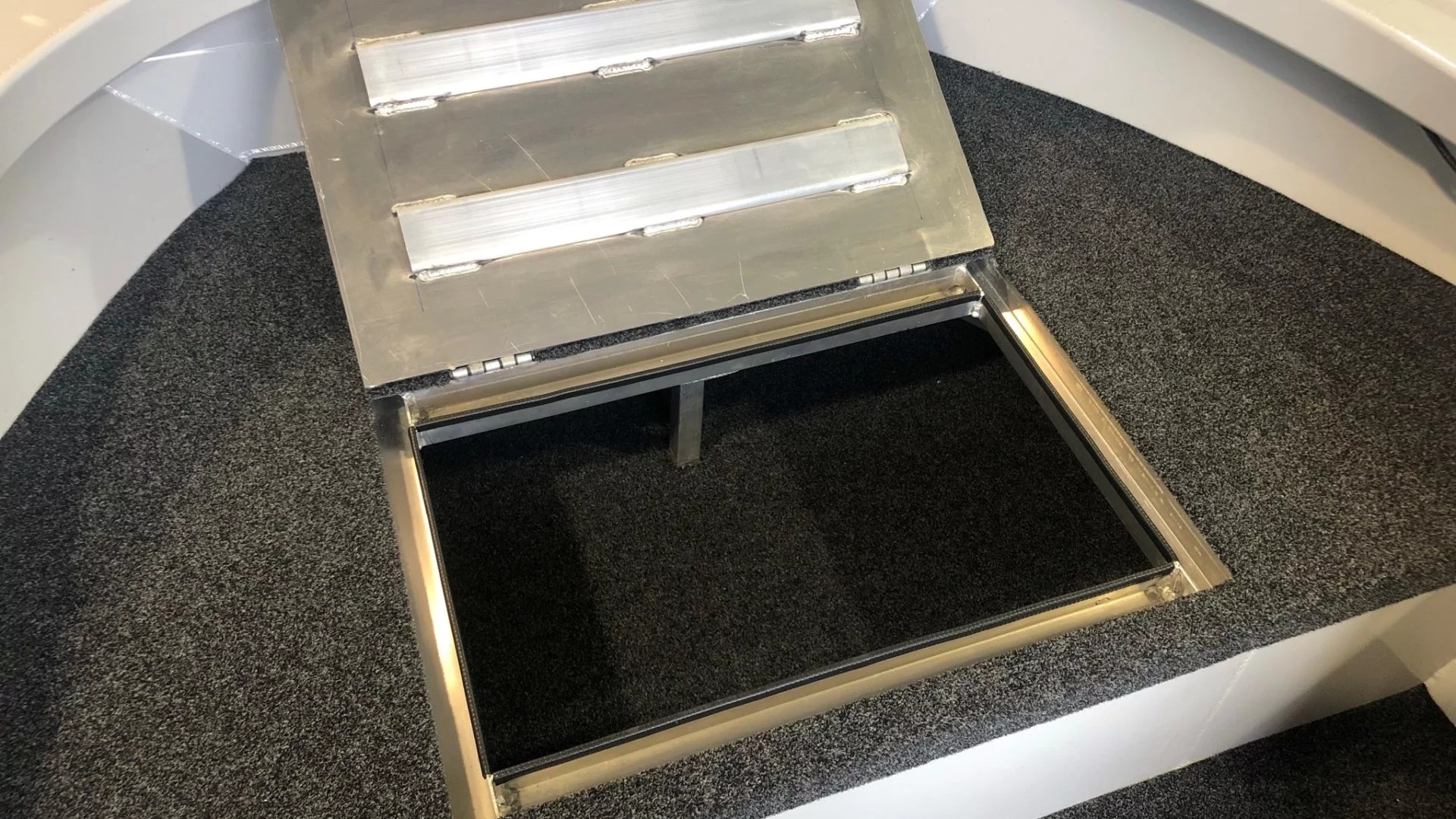

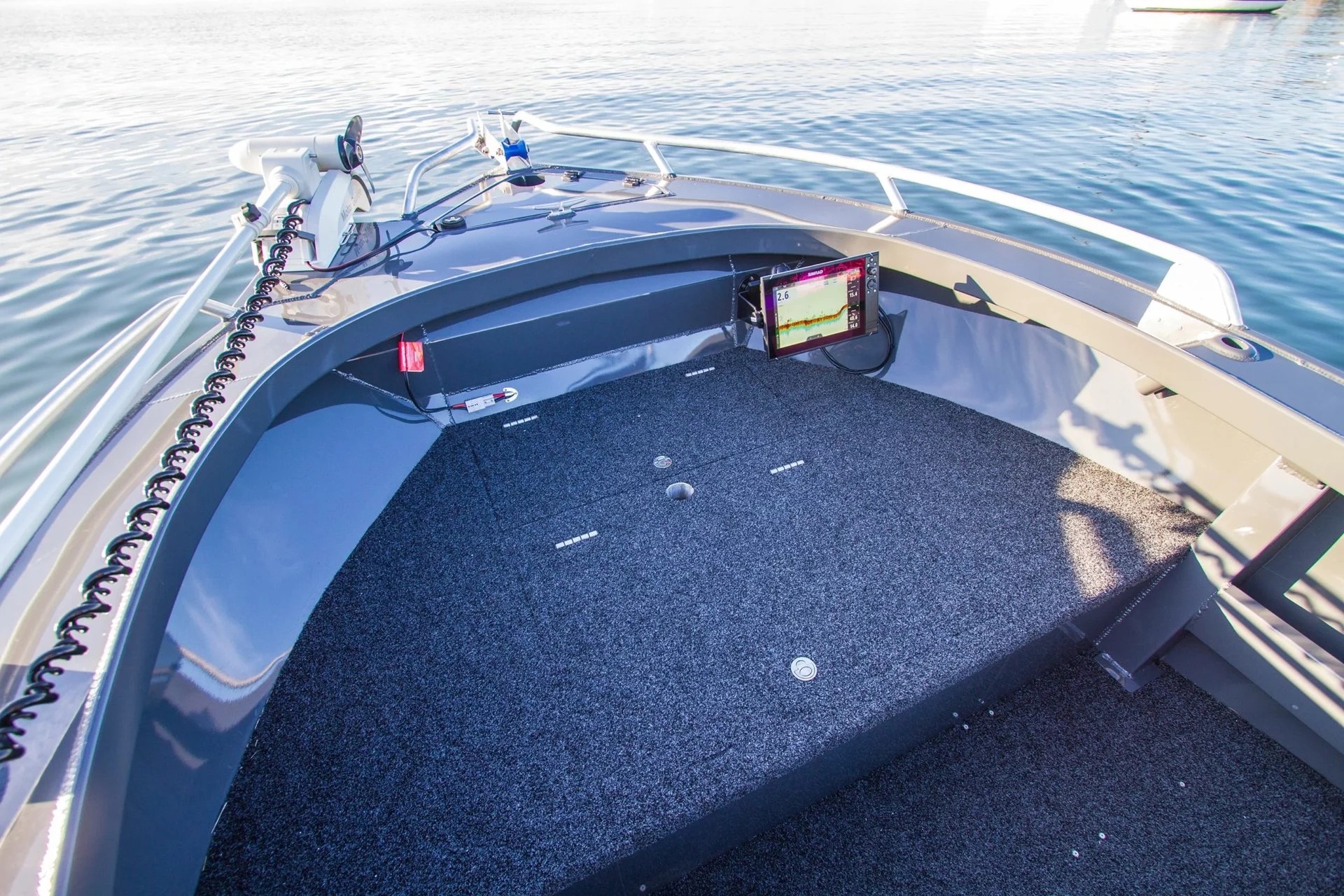

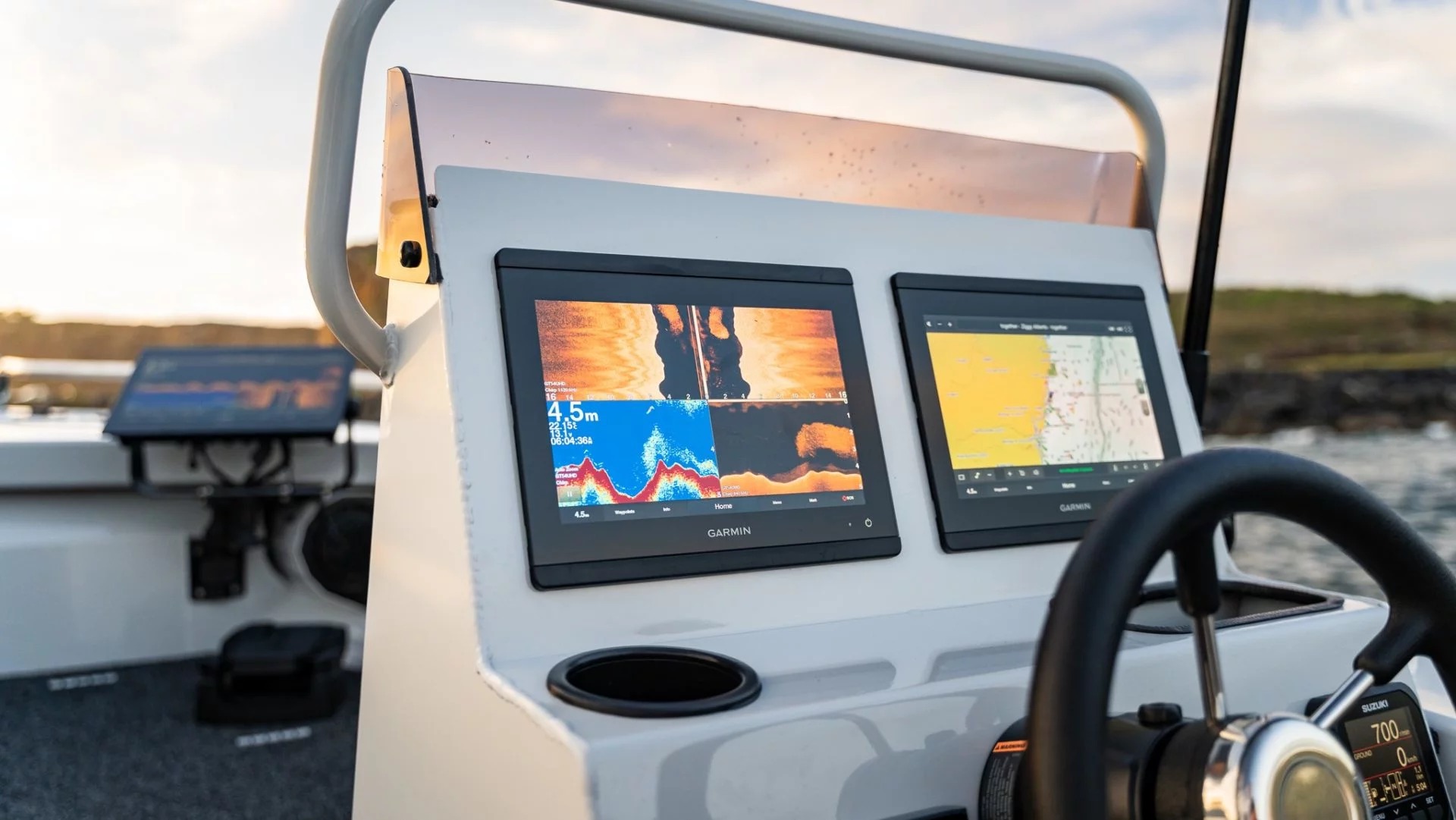

The forward casting deck features full storage beneath to keep your fishing area clutter-free. Built with Formosa’s trademark tough aluminium structure and equipped with a drainage system around the hatches, it keeps your gear dry and secure. The aluminium console is designed for both strength and practicality, accommodating flat-screen electronics, and comes complete with a windscreen, large storage shelf, and a heavy-duty grab rail for stability in all conditions.

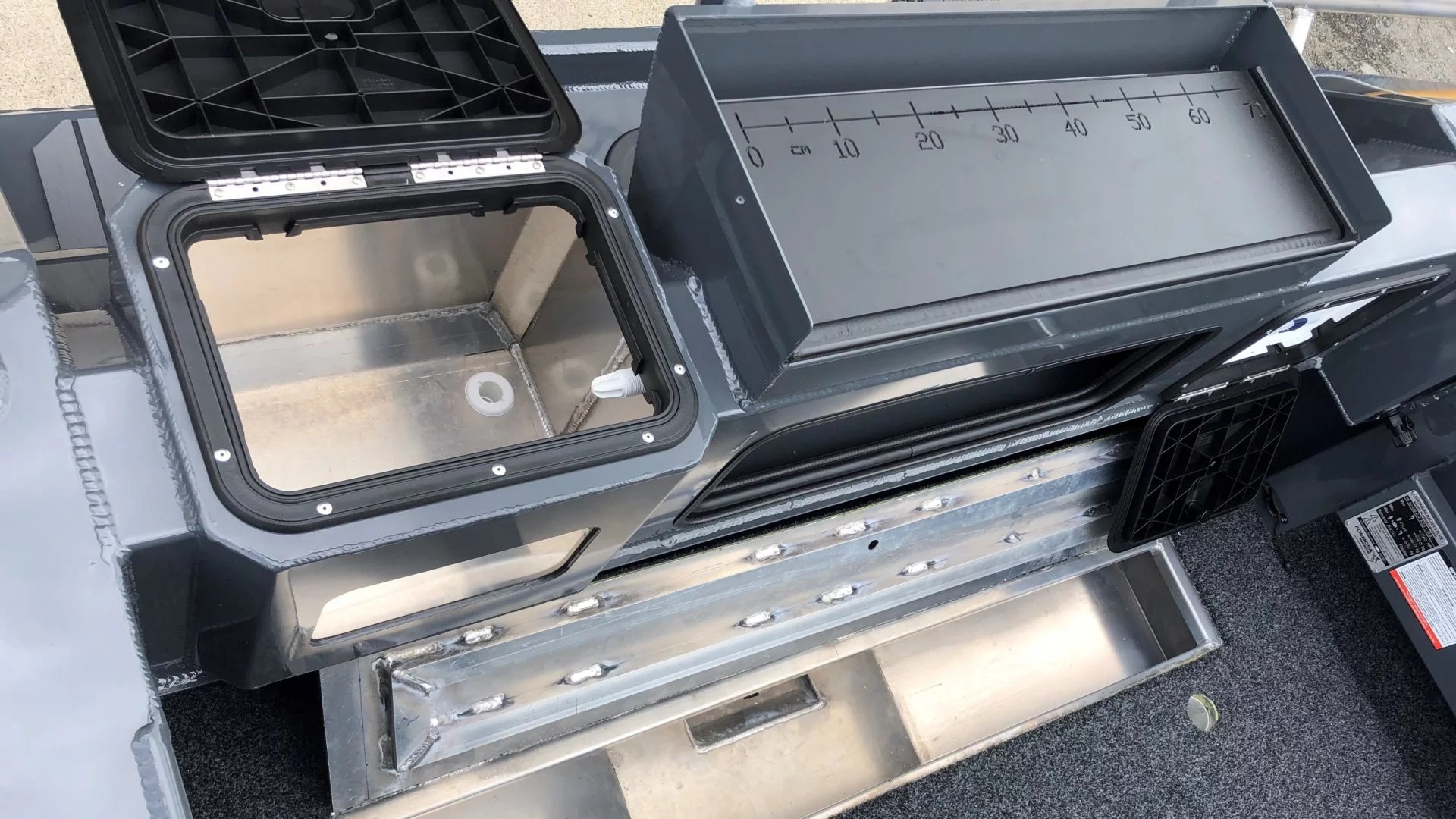

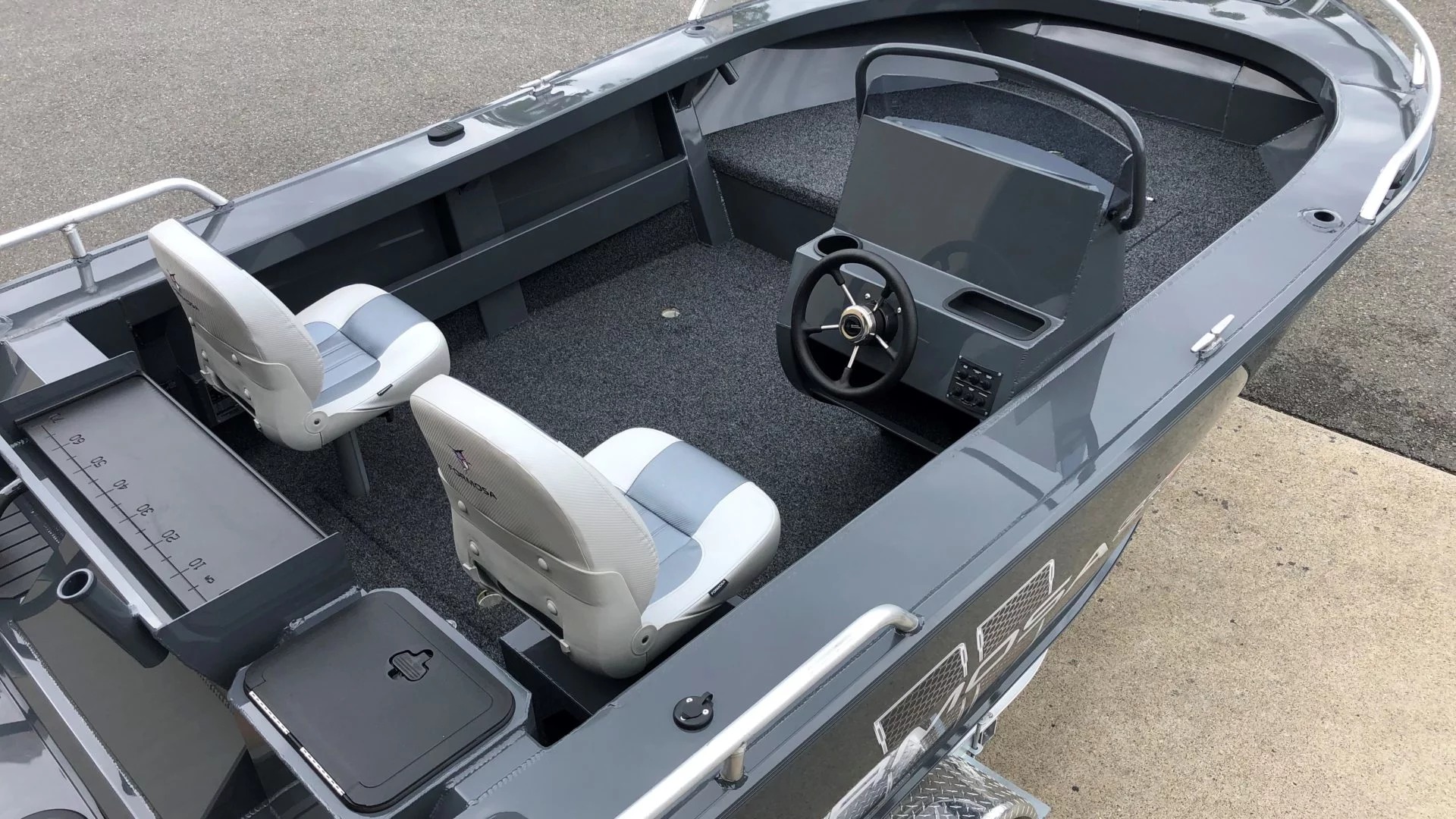

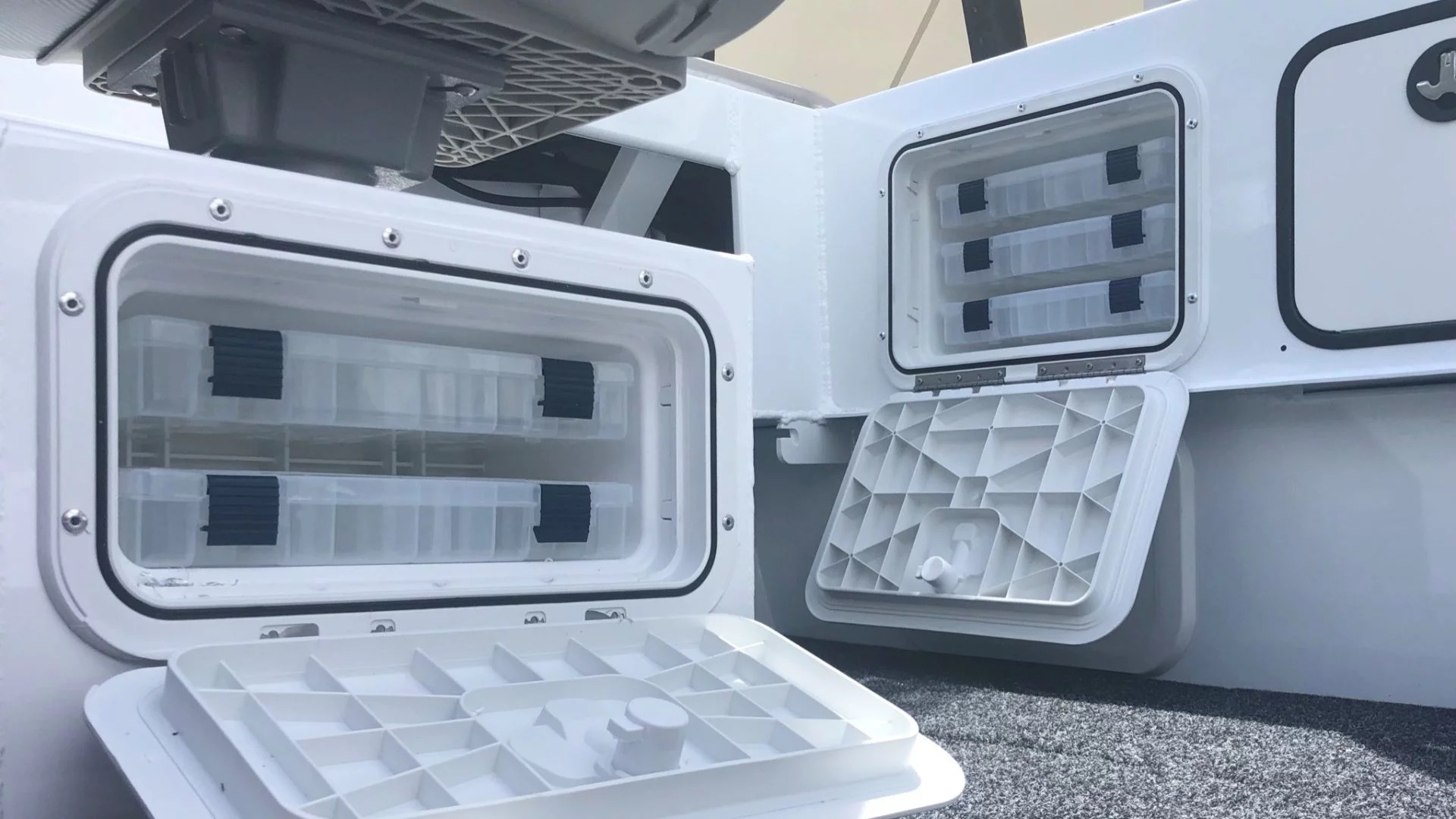

The innovative driver sliding seat box adds versatility, allowing you to reposition the seat along the side pocket, creating extra space while fishing from the stern. From March 2023, new orders include a second sliding seat box for passengers, enhancing comfort and deck space. The seat box also houses a handy 2-tray tackle box, perfect for keeping your essentials organised.

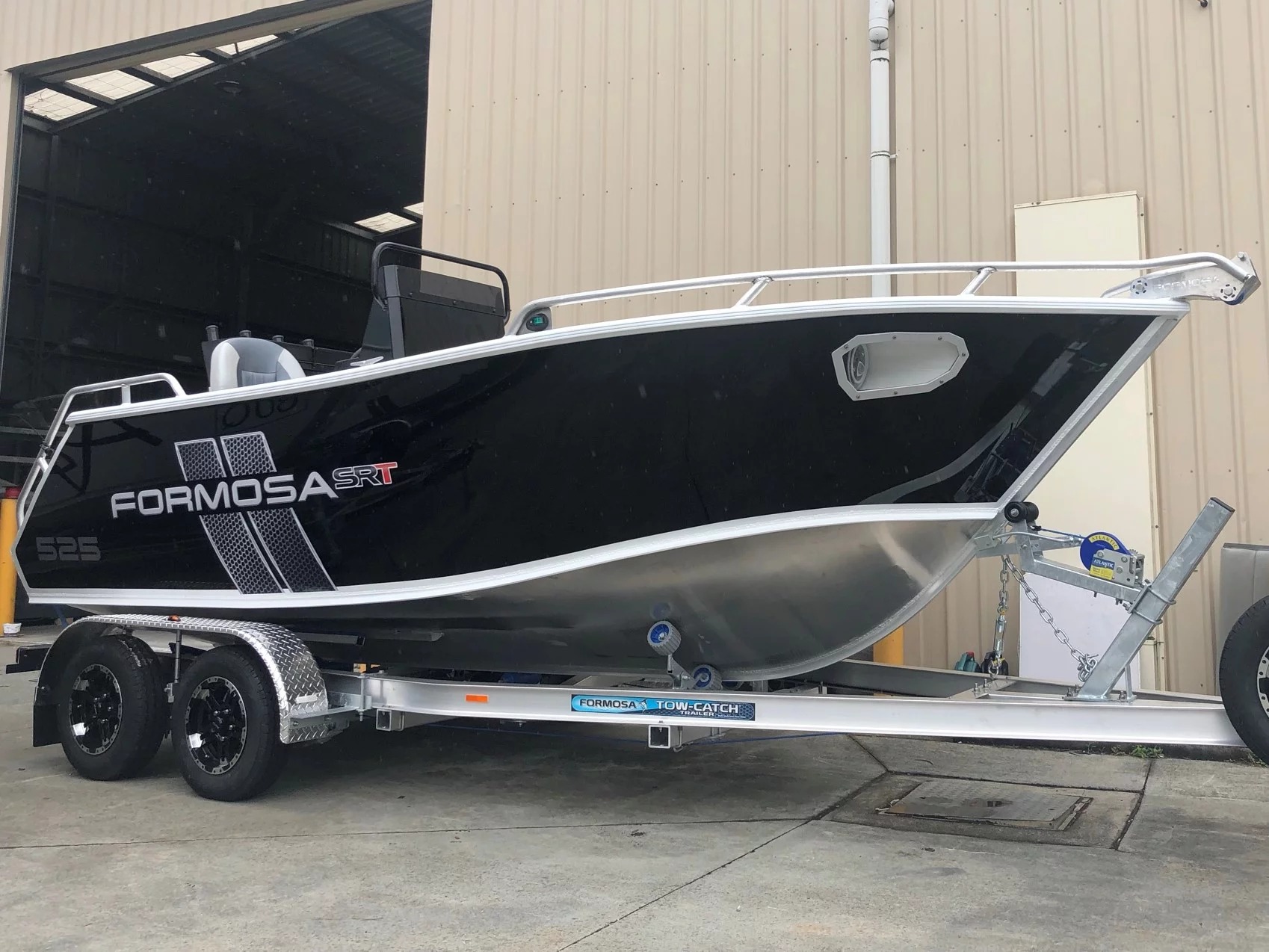

Every Side Console comes equipped with two embroidered folding seats, a robust aluminium bowroller, 32mm handrails, Tow-Catch™ Trailer capability, a heavy-duty dive ladder, quality steering, and a moulded fuel tank with a sender and filter. Other features include an automatic bilge pump, transom deck tread, a foam-filled hull, an electrical harness kit, three cleats, and multiple rod holders (four on standard models, six on the 635). The boat’s exterior is finished with white-painted sides, interior details, and signature Formosa graphics.

Formosa boats are celebrated for their stability, especially when at rest, and the Side Console’s performance is no exception. The Quad4™ Water Ballast system further enhances stability in offshore conditions and, from March 2023, will come as a standard feature on new Side Console models. With this model, you’re ready for anything—from navigating tricky inlets to taking on offshore adventures.

Formosa SRT SIDE CONSOLE Specs

XL — Extra Long Shaft Transom.

Transom Ladder adds 240mm to hull length.
Duckboards with Transom Ladder add 270mm to hull length.
Dry Hull Weight excludes engine, fuel, etc. It is hull and console/cabin only.
All ABP values are determined in accordance with the ABP standard and AS1799 (2021).
1Trailering height is an estimate only and based on a standard Tow-Catch trailer with keel roller height of 450mm.
2Trailering length excludes engine.
*Deck to gunwhale. (Measured midship, dependent on deck and covering).

Please refer to ABP plate attached before operating. The above information is a guide only. Pictures may include Optional Extras. Please verify details with your dealer before purchase.


Description 495 525 565 595 635
Length Overall (excluding engine) 5.13m 5.27m 5.71m 5.99m 6.44m
Beam Overall 2.29m 2.39m 2.48m 2.48m 2.49m
Beam (chine-to-chine) 1.89m 1.99m 2.12m 2.12m 2.12m
*Internal Freeboard 635mm 725mm 735mm 735mm 770mm
Internal Beam (m) 1.76m 1.86m 1.95m 1.95m 1.96m
Casting Deck Height 350mm | Option 500mm 350mm | Option 560mm 350mm | Option 560mm 350mm | Option 560mm 350mm | Option 560mm
¹Trailering Height (overall) 2.25m 2.4m 2.4m 2.4m 2.4m
¹Trailering Height (top folded) N/A N/A N/A N/A N/A
²Trailering Length 6.4m 6.6 - 7m 7m 7.1m 7.4m
Bottom Sheets (5083) 5mm 5mm 5mm 5mm 5mm
Side Sheets 4mm 4mm 4mm 4mm 4mm (5083)
Deadrise 16° 19° 19° 19° 19°
Dry Hull Weight 709kg 731kg 803kg 848kg 928kg
Max HP 115 HP 150 HP 175 HP 200 HP 225 HP
Fuel Capacity 115L 115 L (150 L upgrade) 150L (200 L upgrade) 200L (220 L upgrade) 220 L (80L Aux upgrade)
Transom Leg Length XL XL XL XL XL
Max Engine Weight 195 kg 255 kg 255 kg 255 kg 275 kg
Max Load Capacity 695 kg 765 kg 910 kg 991 kg 995 kg
Max Passengers 5 5 6 7 7

POPULAR OPTIONAL EXTRAS

  • Bait Cutting Board – Low Profile (incl 2 rod holders)
  • Transom Live Well with Window
  • High Casting Deck – Side Console
  • Transom Tackle Box

TECHNOLOGY & KEY FEATURES

  • Aluminium Console with Windscreen
  • Front Casting Deck with Storage
  • Electric Motor Mount
  • Sliding Seat Boxes
  • Aluminium Rod Holders
  • Tow-Catch™ Trailer capability
  • Single Access Active Transom
  • SeaStar Hydraulic Steering & Outboard Hose
  • Quad4™ Water Ballast
  • PRO DECK™ *
